Battcar 20mm Slug

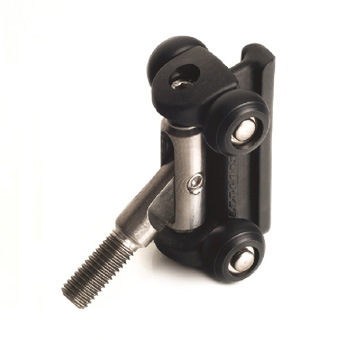

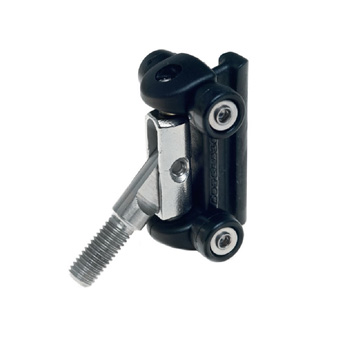

The RU-153x-xx-05 Battcar features an M10 threaded adapter and stainless steel articulated base. The industry standard thread means these slides can be used with most manufacturers receptacles. Available in both standard and high load versions in some track profiles, they are made from a composite carbon mix for a 30% increase in loading. The distance between the wheel base and receptacle is 39mm. This connection is always denoted by ‘05’ at the end of product code.

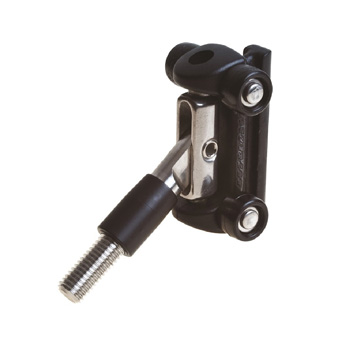

The RU-153x-xx-09 Battcar features the same M10 thread with articulated stainless steel base as the 05 but has an extended reach of 64mm to the batten receptacle. Available in both standard and high load versions for some track profiles, they are made from a composite carbon mix for a 30% increase in loading. This connection is always denoted by ‘09’ at the end of product code.

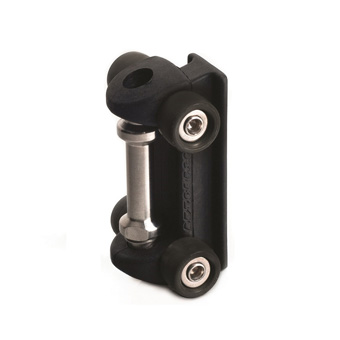

The RU-153x-xx-10 Battcar is designed for use with webbing straps around the stainless steel Capstan. Available in both standard and high load versions for some slide profiles, they are made from a composite carbon mix for a 30% increase in loading. It can be used on receptacles with webbing slots and as an intermediate slide. It can also be used as a headboard car for web on headboards. This connection is always denoted by ‘10’ at the end of product code.

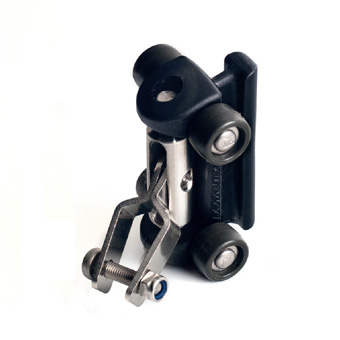

The RU-153x-xx-15 Battcar is a stainless steel fixed fork head designed for use with the RU-1490 batten receptacles. At the leech end, when using with these receptacles, the batten pocket can then be finished with webbing in the normal way. This connection is always denoted by ‘15’ at the end of product code.
