The PNPA range of impact modified and lubricated mast slides can be used in conjunction with the M10 Stud and PNPA batten receptacles to provide a cost effective solution for fully battened sails on large boats, up to approxiamtely 43ft.
These slides have a 19mm webbing slot for use with HP-3506-02.
| Part No. | Description | Slug Size | Waist Size | Overall Length | Equivalent |

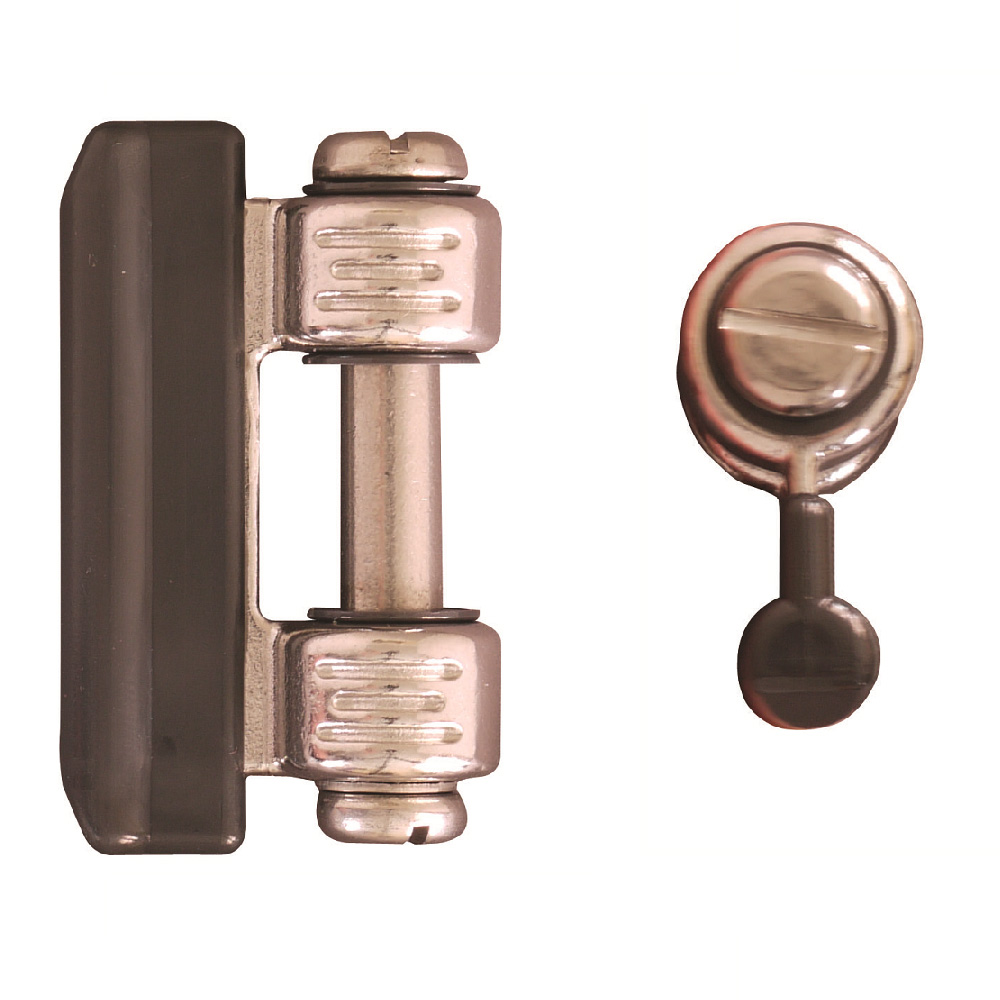

| HP-4000-08 | 8.25 mm Slug Slide, 19 mm webbing slot for use with HP-3506-02 | 8.25 mm | 4.25 mm | 57 mm | HPN590A |
| HP-4000-10 | 10 mm Slug Slide, 19 mm webbing slot for use with HP-3506-02 | 10 mm | 4.25 mm | 57 mm | U00472 / HPN591A |

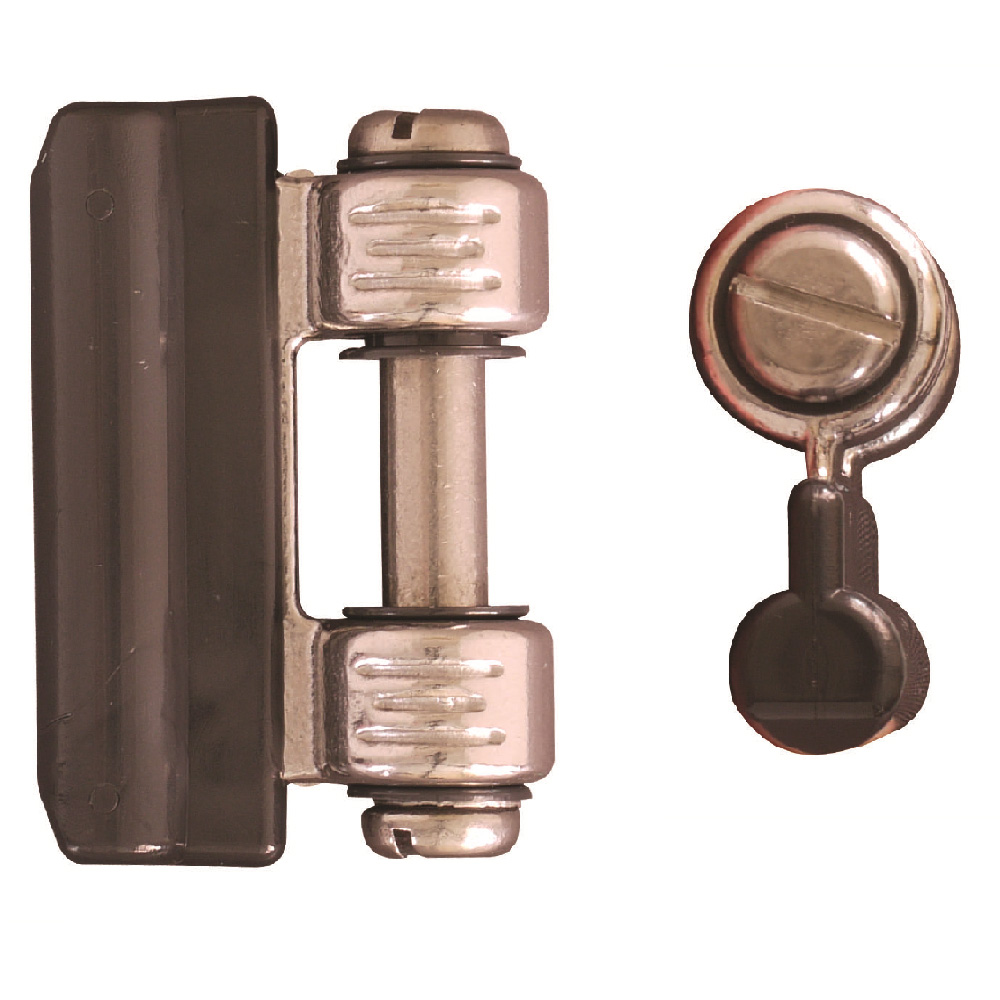

| HP-4000-12 | 12 mm Slug Slide, 19 mm webbing slot for use with HP-3506-02 | 12 mm | 4.25 mm | 57 mm | U00474 / HPN592A |
| HP-4000-15 | 15 mm Slug Slide, 19 mm webbing slot for use with HP-3506-02 | 15 mm | 7.3 mm | 57 mm | U00462 / HPN593A |
| HP-4000-19 | 19 mm Slug Slide, 19 mm webbing slot for use with HP-3506-02 | 19 mm | 7.3 mm | 57 mm | U00464 / HPN594A |
| HP-4000-22 | 22 mm Slug Slide, 19 mm webbing slot for use with HP-3506-02 | 22 mm | 10.2 mm | 57 mm | U00468 / HPN595A |
| HP-4002-15 | 15 mm Slug Slide, 19 mm webbing slot for use with HP-3506-02 | 15 mm | 4.3 mm | 57 mm | U00463 / HPN596A |
No specifications available at this time.
