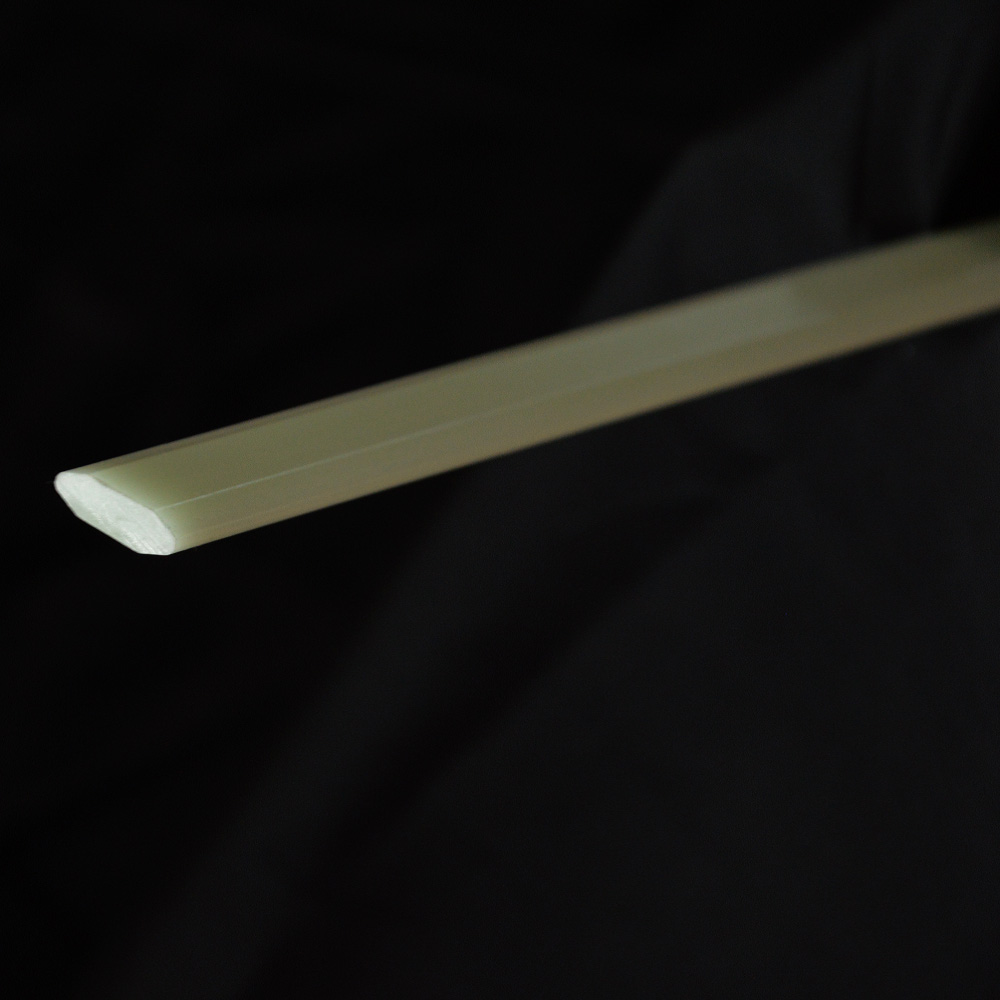

Bluestreak OceanRacer Leech Batten OR1 (20mm x 6mm) x 900mm

Part No. BS-031090L
Unit of Sale. Each
Barcode: BS-031090L
£16.53 (EX VAT)
£19.84 (INC VAT)



This Ocean Racer range of tapered leech battens are designed with a soft tip allowing them to be used anywhere in the sail. These leech battens can be used in mainsails and jibs alike. They are ideally suited for all CHS, IMS, and IOR rules. These battens have set an industry standard and are used in all applications from cruising to Admirals Cup.

The standard batten width of this range allows for standard batten pocket width for ease of production in the loft and minimum stock holding. The degree of batten stiffness varies accordingly to the profile used, ranging from OR1 as the softest up to OR5. Amazon is the new durable maxi full batten with amazing stiffness for weight, some 50% stiffer than OR5.

Batten selection is simplified, just decide on stiffness required e.g. OR1, OR2 etc and refer to the application guide for specific recommendations. To maximise ease of use and production of the Ocean Racer Leech battens we would suggest using the standard stock batten lengths listed.

For the inboard end of these battens either a plain blank end cap or an inner triangle end cap can be fitted. For the outboard end we recommend using the outer triangle end caps. Outer Triangle end caps are a standard width but available in various versions depending upon profile selected. These will fit directly onto the outboard end, even if the batten has been cut to length. Please specify end caps when ordering battens.

Bluestreak Batten Selection Guide

 Boat Size    Batten Position Fractional Rig    Masthead Rig
25 Foot No.1 Top OR1 WR2
No.2 Upper Middle       OR1 WR2
No.3 Lower Middle OR2 WR3
No.4 Bottom OR2 WR3

30 Foot No.1 Top OR1 OR1
No.2 Upper Middle OR1 OR1
No.3 Lower Middle OR2 OR2
No.4 Bottom OR2 OR2

35 Foot No.1 Top OR1 OR1
No.2 Upper Middle OR2 OR2
No.3 Lower Middle OR3 OR3
No.4 Bottom OR3 OR3

40 Foot No.1 Top OR2 OR1
No.2 Upper Middle OR2 OR2
No.3 Lower Middle OR3 OR3
No.4 Bottom OR4 OR4

45 Foot No.1 Top OR2 OR1
No.2 Upper Middle OR3 OR2
No.3 Lower Middle OR4 OR3
No.4 Bottom OR5 OR4

50 Foot No.1 Top OR2 OR2
No.2 Upper Middle OR3 OR3
No.3 Lower Middle OR5 OR4
No.4 Bottom OR5 OR4
No specifications available at this time.

Delivery charges will be calculated at the checkout based on your address and the weight of goods.

Please place orders before 12:00 if you wish to select express delivery.

Product Information Downloads

If available we provide product additional information as downloadable files on this page. If you can't find what your looking for please contact our sales team.

No downloads available at this time.
