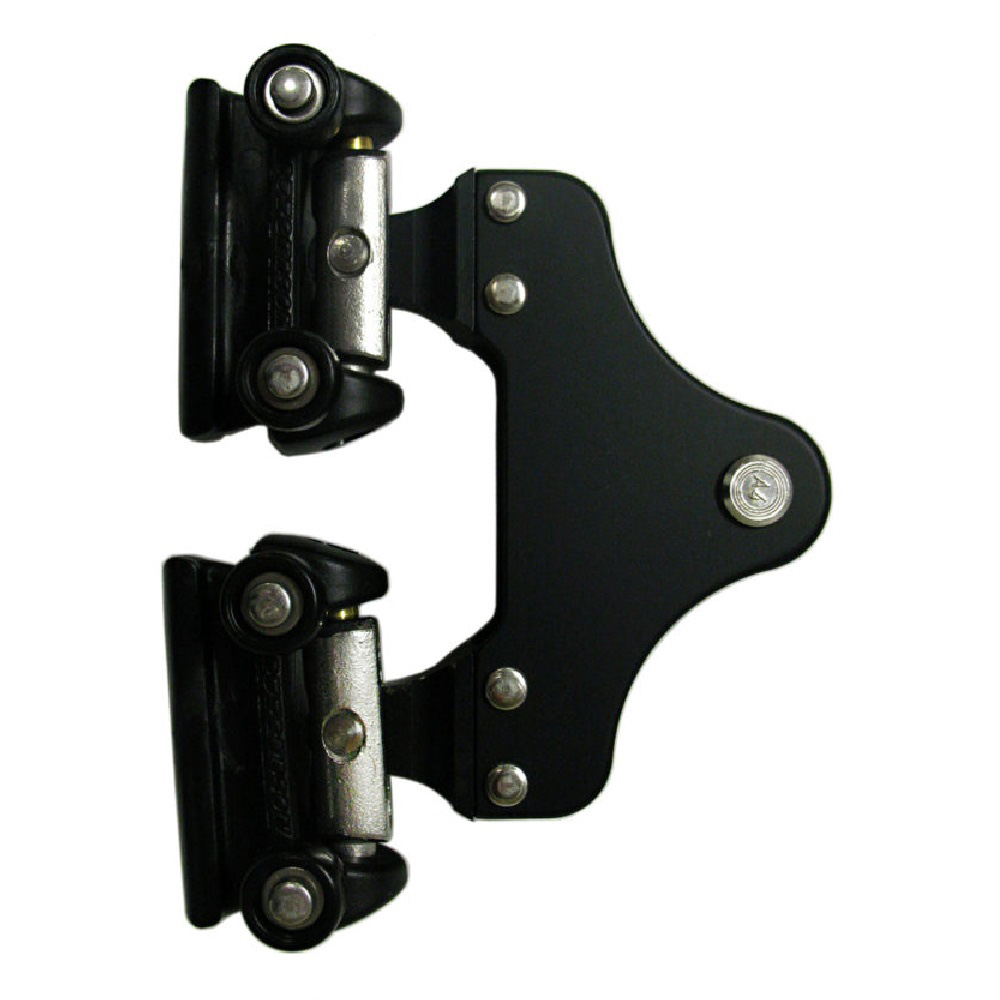

Rutgerson Headboard Dual Car A 11mm Large Wheel Extended

Part No. RU-A112-L
Unit of Sale. Each
Barcode: RU-A112-L
£95.37 (EX VAT)
£114.44 (INC VAT)



The Rutgerson headboard car range is designed to work with both Rutgerson and Harken headboard plates. The headboard cars utilise the existing Battcar range and can easily be divided into three different application areas and sizes:

System A - for monohulls up to approximately 38 ft / multihulls up to approximately 31 ft

System B - for monohulls up to approximately 47 ft / multihulls up to approximately 38 ft

System C - for monohulls up to approximately 60 ft / multihulls up to approximately 47 ft

The headboard car cradles in black anodised aluminium are robust and easily attached to the corresponding headboard. The system is constructed with either two or three cars that can easily be disassembled from the cheek plate with a retractable circlip on system A & B or allen key on system C. The Battcars can move independently of each other to allow easy loading at the mast gate.

Please note: The headboard plates are NOT included and sold separately.

Overview Of Car System Range

Car System Mono Sail Area Multi Sail Area Weight Horizontal SWL
A = 2 x 1530 > 38 ft 40 m sq > 31 ft 28 m sq 230 g 585 kg
B = 3 x 1535 > 47 ft 55 m sq > 38 ft 40 m sq 357 g 685 kg
C = 2 x 1540 > 60 ft 80 m sq > 47 ft 55 m sq 740 g 1,385 kg



Part No. Description Car System Mono Multi Weight Horizontal SWL
RU-A111-00 Headboard dual car system A111, 11 mm 2 x 1530 > 38 ft > 31 ft 230 g 585 kg
RU-A111-HL Headboard dual car system A111, 11 mm, High Load 2 x 1530 > 38 ft > 31 ft 230 g 585 kg
RU-A111-HLL Headboard dual car system A111, 11 mm, High Load, Long 2 x 1535 > 38 ft > 31 ft 291 g 650 kg
RU-A111-L Headboard dual car system A111, 11 mm, Long 2 x 1530 > 38 ft > 31 ft 275 g 585 kg
RU-A112-00 Headboard dual car system A112, 11 mm, Big Wheels 2 x 1530 > 38 ft > 31 ft 230 g 585 kg
RU-A112-HL Headboard dual car system A112, 11 mm, Big Wheels, High Load 2 x 1530 > 36 ft > 31 ft 230 g 585 kg
RU-A112-L Headboard dual car system A112, 11 mm, Big Wheels, Long 2 x 1531 > 36 ft > 31 ft 279 g 585 kg
RU-A113-L Headboard dual car system A113, 11 mm, Big Wheels, Long 2 x 1531 > 36 ft > 31 ft 287 g 585 kg
RU-A16 Headboard dual car system A16, 16 mm 2 x 1530 > 38 ft > 31 ft 230 g 585 kg
RU-A19 Headboard dual car system A19, 19 mm 2 x 1530 > 38 ft > 31 ft 230 g 585 kg
RU-A20 Headboard dual car system A20, 20 mm 2 x 1530 > 38 ft > 31 ft 230 g 585 kg
RU-A23 Headboard dual car system A23, 23 mm 2 x 1530 > 38 ft > 31 ft 230 g 585 kg
RU-A23-L Headboard dual car system A23, 23 mm, Long 2 x 1530 > 38 ft > 31 ft 263 g 585 kg
RU-B11 Headboard triple car system B11, 11 mm 3 x 1535 > 47 ft > 38 ft 357 g 685 kg
RU-B20 Headboard triple car system B20, 20 mm 3 x 1535 > 47 ft > 38 ft 357 g 685 kg
RU-B23 Headboard triple car system B23, 23 mm 3 x 1535 > 47 ft > 38 ft 357 g 685 kg
RU-C23 Headboard dual car system C23, 23 mm 2 x 1540 > 60 ft > 47 ft 740 g 1,385 kg
No specifications available at this time.
