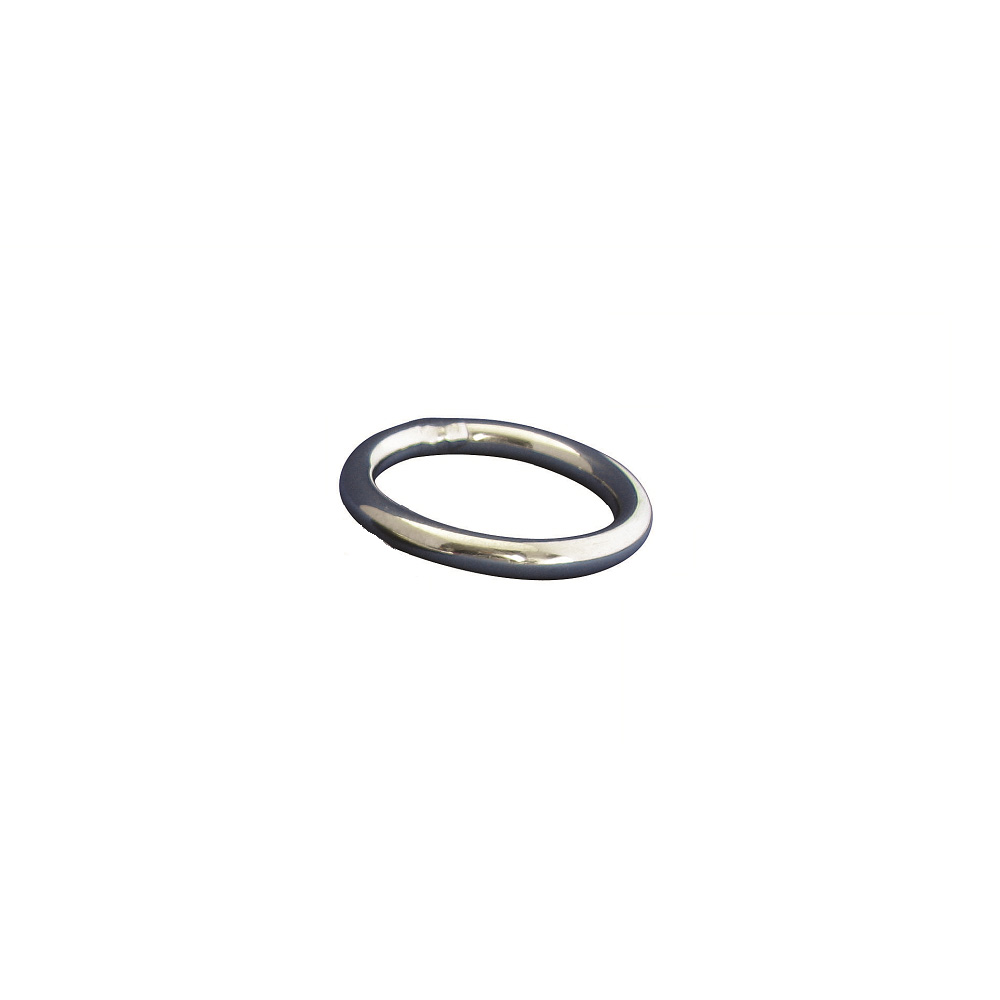

Highly polished 316 stainless steel and TIG welded for 100% reliability.
| Part No. | Internal Diameter | Bar Thickness | Breaking Load |
| 2320-01 | 15mm | 3mm | 700 kg |
| 2320-03 | 20mm | 4mm | 1250 kg |
| 2320-05 | 25mm | 4mm | 1250 kg |
| 2320-07 | 25mm | 5mm | 1750 kg |
| 2320-09 | 30mm | 5mm | 1750 kg |
| 2320-11 | 30mm | 6mm | 3000 kg |
| 2320-12 | 30mm | 8mm | 4750 kg |
| 2320-15 | 40mm | 6mm | 3000 kg |
| 2320-17 | 40mm | 8mm | 4750 kg |
| 2320-19 | 40mm | 10mm | 7000 kg |
| 2320-23 | 50mm | 6mm | 3000 kg |
| 2320-25 | 50mm | 8mm | 4750 kg |
| 2320-27 | 50mm | 10mm | 7000 kg |
| 2320-29 | 60mm | 8mm | 4750 kg |
| 2320-31 | 60mm | 10mm | 7000 kg |
| 2320-33 | 75mm | 8mm | 4750 kg |
No specifications available at this time.
